BIM · Scan-to-BIM · IFC

BIM modelling

Accurate digital 3D models of your buildings and infrastructure, from point cloud to workable IFC model.

LOD 5max. level of detail
IFCOpen BIM standard

Our approach

Better collaboration, a smoother project at every stage.

We use leading BIM technology and software to build detailed digital 3D models of your buildings and infrastructure. Our experience helps you cut errors, improve coordination and work more efficiently across the whole life of the project.

Our models are produced to ISO 19650 and to the Open BIM standards of buildingSMART International. Whether documenting an existing building through Scan-to-BIM or supporting a new build, the model stays readable, structured and shareable with everyone involved.

What we produce

Our BIM modelling services

3D model from a georeferenced point cloud

Native REVIT format and IFC (Open BIM)

Topographic, architectural and structural modelling

Building services to MEP standards

Photorealistic rendering

Clash management and detection

Method

The key stages of our BIM approach

1

Defining your information needs (LOIN)

We set the information requirements: geometric levels (LOG) and information levels (LOI). From these we draw up a project-specific BIM execution plan (BEP), compliant with ISO 19650 and the Open BIM standards of buildingSMART International, based on the exchange information requirements defined for your project (EIR). All of this is available to every party involved.

LOINBEP
2

Assuring quality through the CDE

The Common Data Environment gives everyone visibility and makes collaboration easier throughout the project life cycle. We manage files to IFC and BCF standards. Transfers run daily, following the delivery plans MIDP (Master Information Delivery Plan) and TIDP (Task Information Delivery Plan), consistent with the BEP.

IFCBCF
3

As-built BIM

Modelling existing buildings from point clouds (Scan-to-BIM) captures the real geometry with a laser scanner to produce a digital model true to what is there. Since BIM took hold, this step has become essential: you start from what actually stands, not from archive drawings that are often out of date.

Scan-to-BIMPoint cloud

Certified expertise

A buildingSMART-certified professional on our team

Our team includes a professional certified by buildingSMART International, the global reference body for openBIM and the IFC format — assurance that your models follow the open standards.

Case studies

A few recent projects

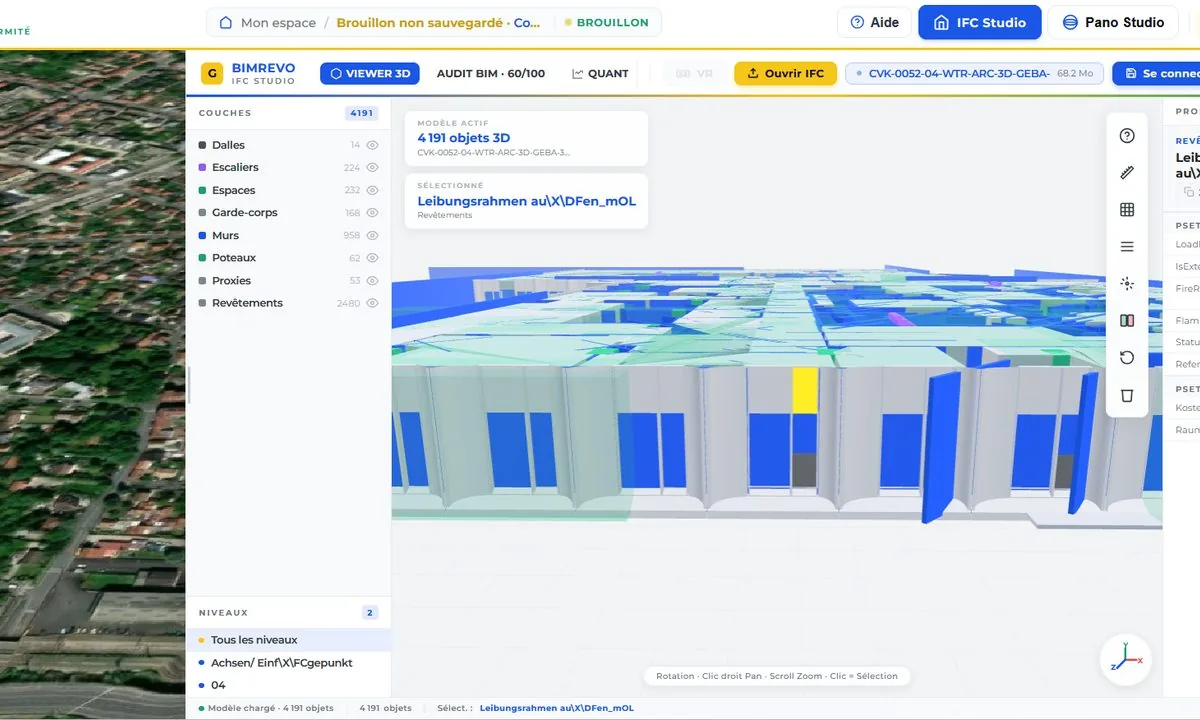

BIM model LOD 5

BIM model LOD 5

University campus · Public body

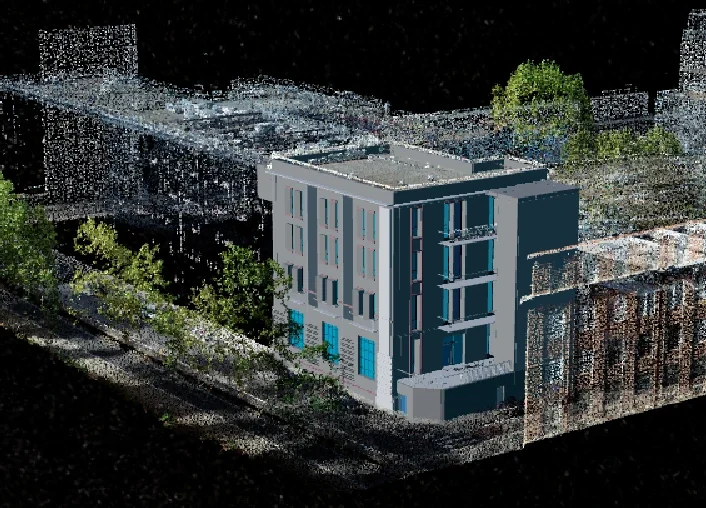

BIM model LOD 2

BIM model of a complex

Company · Construction

Frequently asked

What we get asked most often

What is Scan-to-BIM?
Scan-to-BIM means capturing the real geometry of an existing building with a 3D laser scanner, then turning the resulting point cloud into a workable digital model. It is the standard method for documenting an existing building before refurbishment, conversion or taking over its management.
In what formats do you deliver the models?
In native Revit format and in IFC, the Open BIM standard. IFC ensures your model stays readable by any BIM software, today and in ten years' time, without depending on one vendor.
To what level of detail do you model?
Up to LOD 5. The level is agreed with you up front through the LOIN requirements: geometric level (LOG) and information level (LOI). Modelling finer than needed costs money and adds nothing, which is why we settle this at the very first stage.
Do you work to ISO 19650?
Yes. Our BIM execution plans (BEP) are drawn up in accordance with ISO 19650 and the Open BIM standards of buildingSMART International, based on your project's exchange information requirements (EIR). Our team includes a buildingSMART-certified professional.
Do you model the building services?
Yes, MEP services are modelled alongside the architecture and structure. We also carry out clash detection between services, before the problem shows up on site.
Do you need BIM software to view the model?
No. Our models can be viewed in an ordinary browser through BIMREVO : IFC models, point clouds and 360° tours, with measurement and annotation, nothing to install and no licence for the people you share with.
